Brand Name : Shenzhen LED World
Model Number : LW-RI 2.5
Certification : RoHS,FCC,CCC,CE
Place of Origin : China
MOQ : 1 square meter
Price : negotiable
Payment Terms : T/T, Western Union, MoneyGram
Supply Ability : 2000 square meter /Month
Delivery Time : 10~18 days after receiving the deposit
Packaging Details : Plywood cartons or wooden case
Brightness in White Color (cd/m2) : 500-1300 CD/m2
Stock temperature : sub zero 10℃~65℃
Control Mode : Synchronization
Contrast ratio : ≥4000:1
Pixel configuration : RGB 3 in 1
Led Lamps : SMD2121
Refresh rate : ≥1920HZ
Output Voltage : 5V,40A
HD2.5 rental Full Color LED Display with 480x480 mm die-casting caibnet
HD2.5 rental Full Color LED Display Application:
Our indoor ture color LED screen are widely used in securities exchange, Auto Parts and Maintenance shops,company presentations,Concerts,outside parking lots,hotels,indoor LED video wall,convention center,athletic contest,entertainment TV,feast,image promotion, banquet,Stage Performance,night club and so on .
HD2.5 rental Full Color LED Display Features:
HD2.5 rental Full Color LED Display Parameter:
The specifications of modules | LW-RI2.5 (SMD2121) |
Items | Parameter |
Product Model | P2.5 Full Color Led Module |
Module size | 160x160mm |
resolution ratio | 64x64dots |
Pixel pitch | 2.5mm |
Pixel density | 160000dots/m2 |
Pixel configuration | RGB 3 in 1 |
Driving method | Constant Current Driving,1/32 scan |
Working voltage/Module maximum | DC5V,12W |
power consumption | |
Led Lamps | SMD2121 |
Red Wavelength | 620nm |
Green Wavelength | 520nm |
Blue Wavelength | 470nm |
The specifications of cabinets | |
Frame rate | 60Hz/Second |
Refresh rate | ≥1920HZ |
Display colour | 281.4 trillion |
Grey scale | 65536 |
Brightness in White Color (cd/m2) | 500-1300 CD/m2 |
Brightness adjustment | 200-1300CD,automatic or |
manual 1%-100% | |
Color temperture | 3000-13000 |
Contrast ratio | ≥4000:1 |
Life time | ≥100000 hours |
Operating temperature | sub zero 10℃~55℃ |
Stock temperature | sub zero 10℃~65℃ |
Operating humidity | 10%-90%RH |
Average power consumption | ≤200W/m2 |
Viewing Angle | 120(Horizontal),120(Vertical) |
Best Viewing Distance | 3m-9m |
Input Voltage | 220V/110V, 50Hz/60Hz |
Output Voltage | 5V,40A |
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | IP43 |
Operating system | XP, WIN7, WIN8,VISTA |
Software | Nova or linsn |
Control Mode | Synchronization |
Input Signal | MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RMJ/ASF/Composite,etc |
Our service:

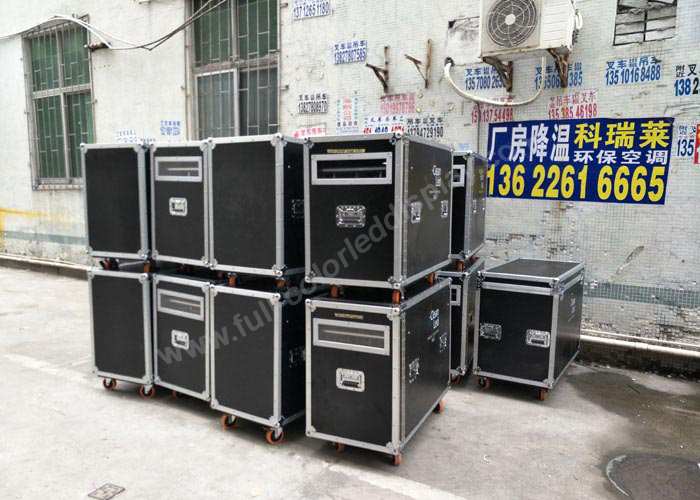

HD2.5 rental Full Color LED Display package:
![]() |
HD RGB 3 In 1 P2.5 Rental Full Color LED Display With Wide View Angle Images |
