High Definition P3.91 Outdoor Full Color LED Display Board Sign 140° View Angle

Brand Name : Shenzhen LED World

Model Number : LW-RO 3.91

Certification : CE,RoHS,FCC,CCC

Place of Origin : China

MOQ : 1 Square Meter

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 5000 Sqm/Month

Delivery Time : 12~18 days after receiving the deposit

Packaging Details : Carton/Plywood case/Flight case etc.

Module size : 250x250mm

Green wavelength : 525±2nm

Pixel configuration : Full color

Module resolution : 64*64

Horizontal viewing angle : 140°

Brightness : ≥1800cd/m2

Working voltage : AC220V/110V±10%

Maximum power consumption : ≤800W/2

Contact Now

High definition P3.91 Outdoor Full Color LED Display board sign 140° View Angle


P3.91 Outdoor Full Color LED Display board sign features:

  • high strength, anti-aging fabrics, IP65 protection grade, can withstand any test environment;
  • Just 12kg / Cabinet, 60mm thickness;
  • Angle adjustment
  • Using angle adjustment structure, panels could be assembled into different shape like convex and concave, the angle range is ±15° .
  • 500x1000 uniform cabinet,compatible with modules of various pixel pitch;
  • Made with same module size of traditional 250x250mm size,only some different for the external members,and with a handle at the back of module,for take the module out of the cabinets；
  • It's possible to be waterproof by pasting glue on it , can be used both outdoors and indoors.;
  • Quick assembly model, 2 persons are able to assemble 20sqm within one hour;
  • Clear and fascinating;Only 8.7kg/cabinet aluminium cabinet,the pre-installation design for module magnet makes the maintenance more convenient and splice seamless;

Why choose us:

  • CE,RoHS,FCC, ISO9001;
  • Provide promotion activity;
  • First-rate service;
  • attractive price! If you have any urgent questions, pls contact me without hesitation;
  • Your logo could be added on the cabinet as requested;

P3.91 Outdoor Full Color LED Display board sign parameter:

Numbers Technical indexes Specification
1 Pixel pitch 3.91mm
2 Module size 250*250mm
3 Module resolution 64*64
4 Module density 65410dots/sqm
5 Pixel configuration Full color
6 Red wavelength 625±2nm
7 Green wavelength 525±2nm
8 Blue wavelength 470±2nm
9 Colors 16777216
10 Best viewing distance more than 5m
11 Horizontal viewing angle 140°
12 Vertical viewing angle 70°
13 Maximum power consumption ≤800W/2
14 Brightness ≥1800cd/m2
15 Gray scale 16bits of per color
16 Color temperature 6500K
17 Control method Synchronization or Asynchronization
18 Driving method 1/16scanning
19 Frame frequency 480Hz
20 Refresh frequency ≥2000 Hz
21 Working voltage AC220V/110V±10%
22 IP grade IP65
23 Working temperature -20°C~80°C
24 MTBF More than 10,000 hours
25 life span more than 100,000 hours
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Our company:

It export from Year 2011, have Own Export License.
Shenzhen LED World Optoelectronics Limited is the top professional LED Display manufacturer, and has about 9 years experience in LED screen industry, more than 9000sqm workshop, 400 workers, automatic production line, strong R&D team. Our products have passed RoHS, 3C, FCC and CE quality authentication.
usage: broadcast, live show, TV studio, conference, party and wedding ceremony, they are also used as advertising screen in shopping mall center, building street, highway and so on.

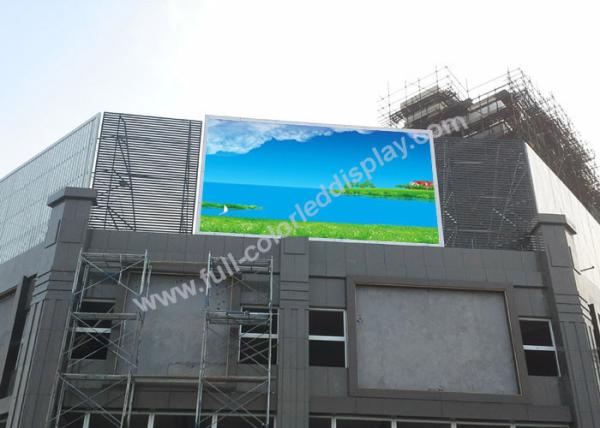

P3.91 Outdoor Full Color LED Display board sign detail:

High Definition P3.91 Outdoor Full Color LED Display Board Sign 140° View Angle
