Outdoor DVI VGA HDMI P5 P6 P8 Full Color LED Display Board RGB256

Product Categories
Shenzhen LED World Co.,Ltd
Contact Now

Outdoor DVI VGA HDMI P5 P6 P8 Full Color LED Display Board RGB256

Brand Name : Shenzhen LED World

Model Number : LW-FO 5

Certification : CE,RoHS,FCC,CCC

Place of Origin : China

MOQ : 1 square meter

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5,000 square meters per month

Delivery Time : 10~20 days after receiving the deposit

Packaging Details : Carton/Plywood case etc.

Thickness of Module (mm) : 17.05(No magnet)

Level of Brightness/Color : RGB256

Average Power Consumption(W/m²) : ≤500 W/m²

Best Viewing Angle : 160(W) 120(H)

Usage : Outdoor

Tube chip color : Full Color

Display function : Video,Animation,Graphics

Led chip : NationstarSMD2727

Contact Now



DVI VGA HDMI P5 P6 P8 Commercial Outdoor LED Display Board Low Power Consumption

Quick detail of Full Color LED Screen
1, Pixel Pitch: 4mm. 5mm, 6.67mm
2, SMD LEDs, Wide viewing angle: 160°/ 140°.
3, Digital Process: 16bits.
4, Standard cabinet size: Customized, cabinet weight: 40kg/Sqm.
5, Grey Level: 16 Bit
6, Recommended minimum viewing distance: 5-7m.
7, Material: Die Casting Aluminum
8, Refresh Rate: 1920Hz


P5 , P6 , P8 Outdoor Fixed LED Display parameter:

ModuleParameter NO.P5P6P8
Size of Module(mm)320*160192*192256*128
Pixel Density(dots/m²)40000 dots/m²27777 dots/m²15625 dots/m²
Pixel Pitch(mm)5mm6mm8mm
LED EncapulationSMD2727SMD3535SMD3535
Resolution of Module(dots)64(W)*32(H)32(W)*32(H)32(W)*16(H)
Thickness of Module (mm)17.05(No magnet)17.05(No magnet)17.05(No magnet)
Weight of Module (Kg)0.50.3690.343
Driving MethodConstant Current DrivingConstant Current DrivingConstant Current Driving
Equilibrium Brightness(CD//m²)≥7000 CD/m²≥7000 CD/m²≥6500 CD/m²
BracketSize(mm)160*160192*192256*128
320*160384*192256*256
CabinetSize of Cabinet(mm)640*640576*576768*768
512*512
Power Supply Mode5V/40A*1PC5V/40A*1PC5V/40A*1PC
Best Viewing Distance(m)5-100m6-100m8-100m
Best Viewing Angle160(W) 120(H)160(W) 120(H)160(W) 120(H)
Storage Temperature(ºC)-35ºC ~ +85ºC-35ºC ~ +85ºC-35ºC ~ +85ºC
Working Temperature(ºC)-40ºC ~ +50ºC-40ºC ~ +50ºC-40ºC ~ +50ºC
Relative Humidity10%-95%10%-95%10%-95%
Power SupplyWorking Voltage(V)AC220V±10%AC220V±10%AC220V±10%
Average Power Consumption(W/m²)≤500 W/m²≤500 W/m²≤380 W/m²
Max Consumption(W/m²)≤1000 W/m²≤1000 W/m²≤760 W/m²
Control SystemScan and control Method1/8 Synchronous Control1/8 Synchronous Control1/4 Synchronous Control
Driving ComponentsConstant current DrivingConstant current DrivingConstant current Driving
Technical ParametersRefresh Frequency≥1920 Hz/Sec≥1920 Hz/Sec≥1920 Hz/Sec
(HZ)
　
Frame Frequency≥60 HZ/Sec≥60 HZ/Sec≥60 HZ/Sec
(HZ)
Level of Brightness/ColorRGB256RGB256RGB256
Level of Gray655366553665536
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.



Feature Of Full Color LED Screen

  • High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
  • Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.
  • High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.
  • Good heat dissipation with fans and using meanwell power supply, long lifespan.
  • You can adjust the resolution by change modules directly, this can save your cost and labor.
  • 250x250mm module, compatible with various pitches such as PH2.6/PH2.9/PH3.9, high selectivity
  • High-precision and ultra-practical design, 500x500/1000mm cabinet, light and easy to assemble
  • Customized arc-side locks design, the angle can be adjusted to achieve arc, round and S-shaped splicing.
  • High-contrast outdoor pure black light, non-destructive refresh and grayscale. Achieve ultra-high contrast 8000:1, low brightness 1000~3000cd adjustable, protect the human eye, meet indoor and outdoor application scenarios
  • Configure PWM constant current drive IC to eliminate the "caterpillar" image, low brightness and no color cast, no color block, gray scale is too smooth and no jump, no first line dark phenomenon, refresh ≥ 3840HZ, complete guarantee 16bit gray scale, Real color reproduction, high quality display
  • The flat spray mask design ensures that the entire screen plane is free of any warping, and the high-quality black protective colloid is used to perfectly realize the full-angle display of the lamp bead.


Why choose us:

  • Own Unique Design LED Screen;
  • More than hundreds of workers and using technical equipment;
  • We are expert in rental LED display , we have many ultra-thin super-light panel designs for your choice;
  • With special rigging system It is very convenient to hang the screen to truss It is very safe;
  • Aluminum backcover is good for heat dissipation no need a separate fan inside it is very quiet for some events that requests very quiet environment;
  • Your inquiry related to our products or prices will be replied in 24hrs;
  • LED World has 7 years of export experience;

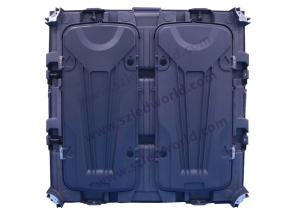

Outdoor DVI VGA HDMI P5 P6 P8 Full Color LED Display Board RGB256Outdoor DVI VGA HDMI P5 P6 P8 Full Color LED Display Board RGB256
P5 , P6 , P8 Outdoor Fixed LED Display package:

Outdoor DVI VGA HDMI P5 P6 P8 Full Color LED Display Board RGB256
